SAP Cloud Connector Monitoring

PreviousSAP BO Data Services MonitoringNextSAP Host Agent Monitoring

Last updated 8 months ago

Monitoring the SAP Cloud Connector ensures its availability and timely detection of performance bottlenecks. This facilitates proactive issue resolution, resource optimization, and alignment of the SAP Cloud Connector application with user expectations.

Prerequisites

Before configuring an SAP BODS system for monitoring in IT-Conductor, follow the instructions below.

Account Requirements

  1. Create a new SAP Cloud Connector monitoring account.

  2. Assign it with its appropriate authorization level as defined below.

Role
Technical Role Name
Authorization

Administrator

admin or sccadmin

All operations

Support

sccsupport

Edit log and trace configuration

Display

sccdisplay

Read configuration

Monitoring

sccmonitoring

Read monitoring information

Configure SAP Cloud Connector for Monitoring in IT-Conductor

To configure SAP Cloud Connector monitoring in IT-Conductor, follow the instructions below.

Add New SAP Cloud Connector

  1. Visit and enter your login credentials.

  2. Navigate to Dashboards → Administrator to access the Administrator's Dashboard.

  3. Locate the SAP Cloud Connectors actions panel and click the title to access the complete list.

  • Description - refers to any relevant information about the connection being created.

  • Organization - refers to an administrative structure defining objects with a common goal or purpose.

  • Role - refers to the environment where the connection will be used.

  • Site - refers to a logical object that describes a particular area or location, depending on the context in which it is used.

  • Gateway - allows communication between the customer's site network and the IT-Conductor cloud platform.

  • Scheme - refers to the web protocol to be used.

  • Host - refers to the host of the cloud connector server.

  • Connection Timeout - refers to the maximum time IT-Conductor will attempt to establish a connection to Cloud Connector (300 seconds by default).

  • Description - refers to any relevant information about the account being created.

  • Application - refers to the Cloud Connector instance created in Step 3.

  • Person - refers to the name of the user who is adding the connector.

  • User Password - refers to the password of the user.

  • Re-type Password - refers to the same password provided in the User Password field.

  1. Verify if the connector was added to the SAP Cloud Connectors actions panel and check its status.

  1. Navigate to the service grid and verify if the system was added under the SAP Cloud Connectors node.

Note: The system will appear in the service grid within 5-15 minutes.

Monitor SAP Cloud Connector in IT-Conductor

To view the availability and performance metrics of a SAP Cloud Connector, locate the SAP Cloud Connector node in the service grid.

SAP Cloud Connector Key Metrics

  • Availability - refers to the operational state and accessibility of the SAP Cloud Connector instance.

  • Connection Failures - refer to the events where attempts to establish a connection are unsuccessful.

  • Heartbeat - refers to the periodic signal sent to the system, enabling real-time detection of system downtime.

  • Memory: Heap Total - refers to the total amount of heap memory allocated to the SAP Cloud Connector process.

  • Memory: Physical Free - refers to the amount of physical memory that is currently available and unused.

  • Memory: Physical Used - refers to the amount of physical memory currently utilized by the system.

  • Missing Account - shows if the SAP Cloud Connector has a missing or wrong account configured in ITC.

  • Retriever Failures - shows if ITC failed to retrieve SAP Cloud Connector data.

Note: All metrics will not show data when a system is unavailable.

Sub-Accounts in Service Grid

The expanded view of sub-accounts displays the sub-accounts associated with the Cloud Connector.

Expand further into the sub-account to view the Certificate, Cloud to On-Prem and On-Prem to Cloud virtual hosts, and Tunnels.

Sub-Accounts Key Metrics

  • Certificate Days to Expiration - refers to the number of days remaining before a certificate expires.

  • Virtual Host and Resource Calls

    • Calls - refers to the total number of calls or requests.

    • Received - refers to the total number of bytes received through a call or request.

    • Calls Sent - refers to the total number of bytes sent back as a response.

  • Tunnel State - refers to the connection state of the tunnel. The state is either Connected, ConnectFailure, or Disconnected.

Click to start adding a new connector for monitoring.

Fill out all the necessary information in the New SAP Cloud Connector wizard. Once completed, click to add the connector.

Provide the new account information in the New Account screen and click to complete the configuration.

User Name - refers to the user with the “Administrator” role as listed in .

Note: The status will remain on Ready for a few minutes. Refresh the panel if needed. If there are configuration issues, such as incorrect connection parameters or an invalid account, the status will remain Ready. Click to display the logs and troubleshoot. If everything is configured correctly, the status will change to In Progress.

To access a historical view of each of these metrics, click and a pop-up chart will be displayed.

service.itconductor.com
Account Requirements
Figure 1: SAP Cloud Connectors Actions Panel in Administrator's Dashboard
Figure 2: SAP Cloud Connectors Actions Panel Page
Figure 3a: New SAP Cloud Connector Wizard (New Cloud Connector Screen)
Figure 3b: New SAP Cloud Connector Wizard (New Account Screen)
Figure 4: SAP Cloud Connector View in Service Grid
Figure 5: SAP Cloud Connector Availability Chart in Service Grid

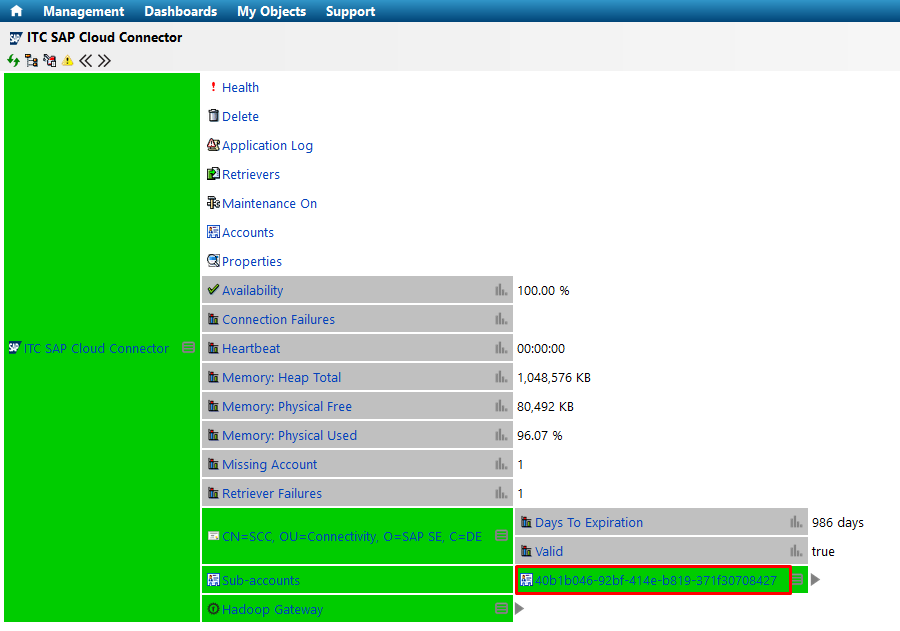

Figure 6: SAP Cloud Connector Sub-accounts in Service Grid

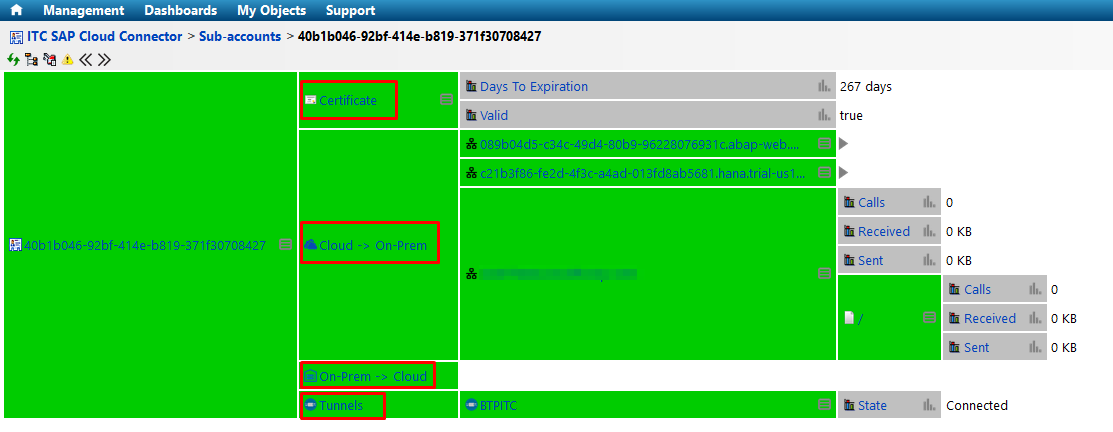

Figure 7: Sub-account Certificate, Virtual Hosts, and Tunnels in Service Grid
Figure 8: SAP Cloud Connector Monitored Metrics for Sub-Accounts
