# SAP Transports using ChAI Transport requests are packages that are used to transfer code and configuration changes from one SAP system to another. Managing transport requests involves developers initiating the transport request, performing adjustments in the queue, and running export tasks. Then the SAP Basis team (or Transport administrator) schedules it in the queue for later import once approved. Overall, it takes too much time and effort, especially when fully executed manually. SAP Transport Automation simplifies the process of moving transport requests in SAP from the source system to the target system. The IT-Conductor ChAI (Change Automation Intelligence) solution manages ticketing, tracking, and transport execution. After approvals, ChAI automates the movement of changes across SAP environments, reducing manual involvement by approximately 50%. This approach decreases errors and speeds up deployment. ### Prerequisites * Configure your SAP systems for monitoring. See [SAP NetWeaver Monitoring](https://docs.itconductor.com/user-guide/monitoring/sap/netweaver) for more details * Navigate to [Support → Downloads → SAP Transport Downloads](https://service.itconductor.com/objectSavedSearch?OBJECT_Id=5843758999113569) and download the following file. | System | Name | Description | Version | Transport Number | | ------------------------ | ----------------------------- | ---------------------------------------------- | ------- | ---------------- | | SAP Transport Automation | IT-Conductor Function Modules | IT-Conductor Custom Function Modules Transport | 6.87 | ZO2K900154 | * Download and import the SAP NW STMS Management Role file from the [Support → Downloads → SAP Security Downloads](https://service.itconductor.com/objectSavedSearch?OBJECT_Id=5930548857087850) menu. | Name | Description | Version | | --------------------------- | --------------------------------------------------- | ------- | | SAP NW STMS Management Role | SAP NW Transport System Management Role Import File | 6.86 | {% hint style="info" %} **Note:** If Single Sign-On (SSO) is required for users (SAP developers/requesters, Managers/Approvers, and Basis administrators, etc.), please consult with the IT-Conductor Project Team for specific Active Directory (AD) integration onboarding tasks. {% endhint %} {% hint style="info" %} **Note:** If you have a specific process for transport requirements into the QA/Consolidation system, as well as the Production/Delivery system, please provide and discuss a custom workflow/logic for the IT-Conductor project team to configure. {% endhint %} * Make sure that an SAP user with the STMS role has been created and assigned to the IT-Conductor robot account (See [Create Robot User](https://docs.itconductor.com/user-guide/account-administration/create-robot-users) for more details). Please reach out to IT-Conductor Support for this step to complete the configuration and testing of the initial workflow. ### ChAI for SAP Dashboard The ChAI for SAP Dashboard is a centralised platform where users can initiate, track, monitor, and approve all submitted customisation and workbench transport requests in real time. This dashboard enables SAP Basis teams to effortlessly monitor request statuses, ensuring smoother approvals and streamlined transport management. * **Requests by Status:** Displays a chart showing the number of transport requests that have succeeded or failed. * **Requests by Target System:** Displays a chart showing the number of transport requests grouped by target system. * **Requests by Source System:** Displays a chart showing the number of transport requests grouped by source system. * **Requests by User:** Displays a chart showing the number of transport requests submitted by each user. * **Transport Request Forms:** Displays the available wizards used to initiate new transport requests. You can start the following types of transport from here: * Emergency Transports * Transports to a Production System * Transports from a DEV System to a QA System * **Approval Requests:** Lists transport requests that require approval. (Only visible to users with the approver role). * **Transport Request Submissions:** Lists all transport requests that have been submitted. {% hint style="info" %} **Note:** The dashboard displays data from the last 7 days. {% endhint %}

Figure 1: ChAI for SAP Tranports Dashboard in IT-Conductor

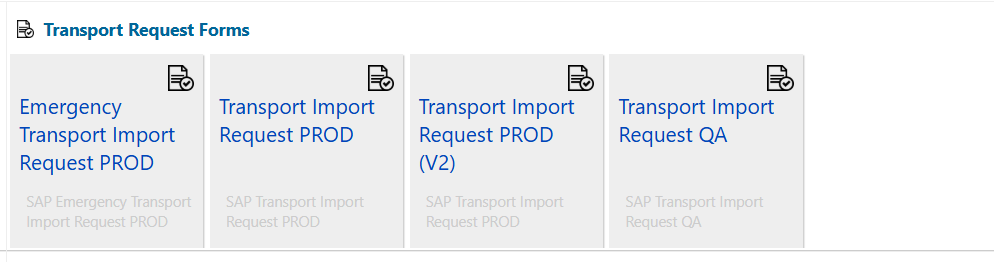

### How to Initiate a Transport Request To start a transport request using the ChAI for SAP Dashboard, follow the instructions below. 1. Visit [service.itconductor.com](https://service.itconductor.com/) and enter your login credentials. 2. On the main menu, navigate to **Dashboards → ChAI for SAP Transports → Transport Request Forms** and select one of the options.

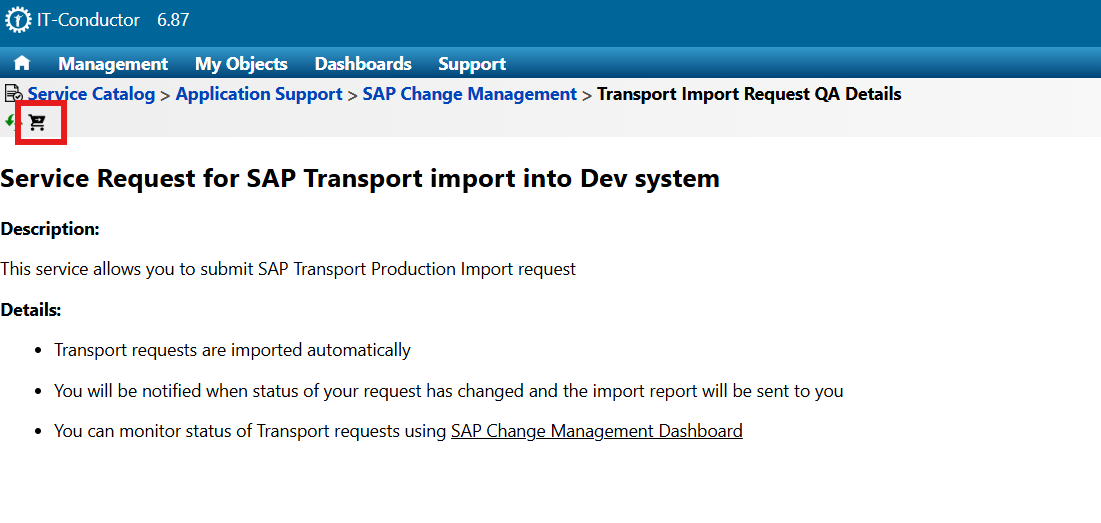

3. Click on the **Checkout Service Request**

icon.

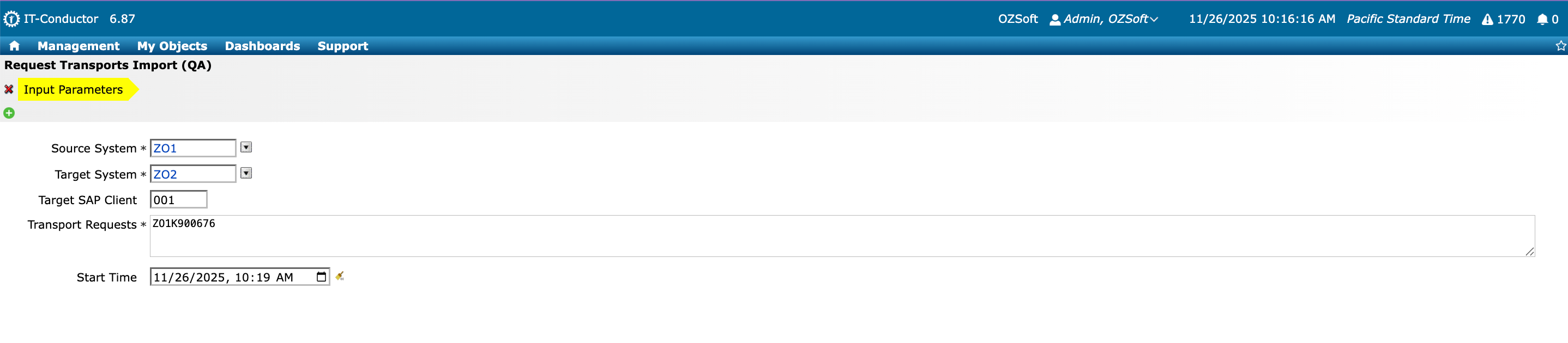

4. On the Request Transports Import wizard, enter the following parameters 1. **Source System** - refers to the SAP system where changes are developed and packaged into a transport request. 2. **Target System** - refers to the SAP system where the transport request is imported after approval. 3. **Target SAP Client** - refers to a specific client within the target system where the transported changes will be applied. 4. **Transport Requests** - refers to packages that contain SAP system changes, such as configurations or custom developments, for deployment. 5. **Start Time** - refers to a scheduled time when a transport request begins the import process into the target system. Click on the calendar icon to select a time and date.

5. Click on the

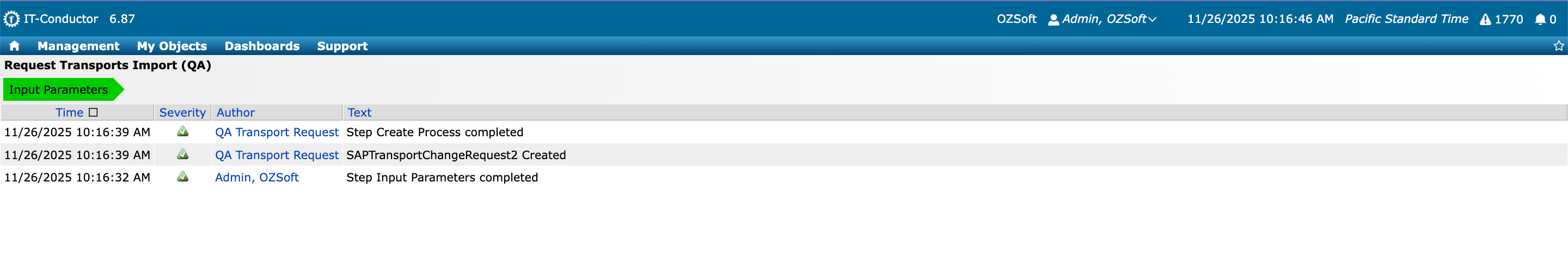

icon to execute the transport request. 6. Check the Activity Log.

7. Return to the dashboard and find the newly created request listed in the **Transport Request Submissions** tile.

### Copy a transport request 1. To copy a transport request from an existing one, go to the **ChAI for SAP Transports Dashboard** → Transport Request Submissions, and click on the ![](https://377464071-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FXhp08OmU8050PePmMgDt%2Fuploads%2FtSmg6dyd5WULxSBhFFCK%2Ftransporticon.gif?alt=media\&token=4580823c-db0f-4084-a277-e456452980d4) icon → ![](https://377464071-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FXhp08OmU8050PePmMgDt%2Fuploads%2FzxKJ1YXiSeC0Bp96e36r%2Fcopy-icon.gif?alt=media\&token=4ab399d9-a1b8-4dbf-a5d6-a30e9b6c7a7e) Copy.

Figure 6a: Copy an existing transport request

2. Fill in the following details: 1. **Description:** a summary of the transport request. 2. **Planned Start Time:** refers to the time and date when the transport process should begin. Click the calendar icon to select a time and date. 3. **Import Start Time:** refers to the time and date when the transport will be imported into the target system. Click the calendar icon to select a time and date. 4. **Incident ID (optional):** Enter the IT-Conductor ticket number for reference, if applicable.

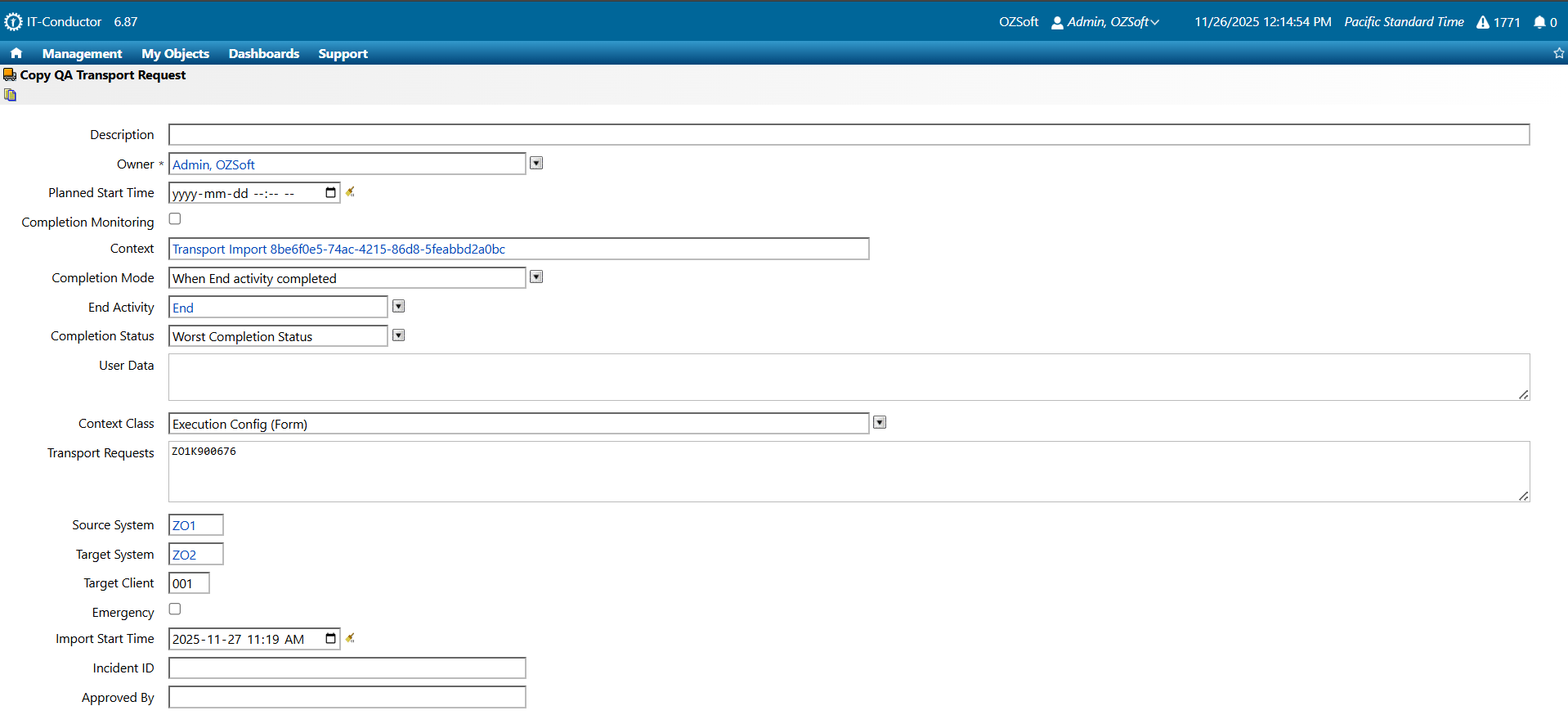

Figure 6b: Copy an existing transport request

3. Click the ![](https://377464071-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FXhp08OmU8050PePmMgDt%2Fuploads%2FzxKJ1YXiSeC0Bp96e36r%2Fcopy-icon.gif?alt=media\&token=4ab399d9-a1b8-4dbf-a5d6-a30e9b6c7a7e) icon to save. {% hint style="info" %} **Note:** The processes for emergency and production transports are very similar to each other, with the only difference being that production transports trigger an [approval workflow](https://itconductor.atlassian.net/wiki/spaces/~6400adea93cf2599462e4977/pages/3856760833/IT-Conductor+ChAI+for+SAP+Transport+Automation+wiki+draft#Approving-Transport-Requests). {% endhint %} ### Approving Transport Requests Approval workflows are triggered after creating a Transport Import Request in a Production system, ensuring changes are reviewed and authorised before deployment. If you’re a designated approver, follow the instructions below to approve a transport request. 1. After the workflow has started processing, an email notification will be sent to the respective approver. Click the link in the email to go to the workflow.

Figure 7: Approval Request Email Notification

2. As an approver, you can also go to the **ChAI for SAP Transports Dashboard**, open the **Approval Requests** tile, and select any pending transport.

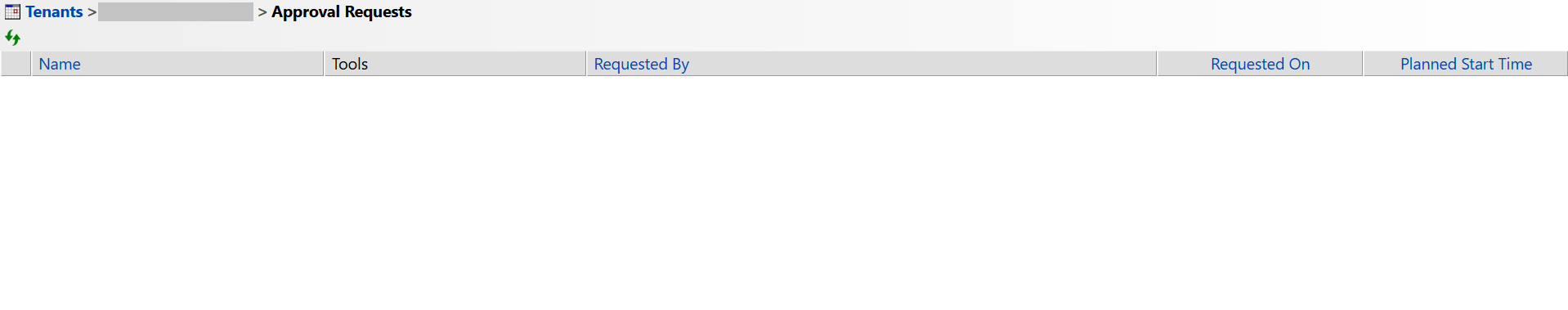

Figure 8: Approval Requests in the ChAI for SAP Transports Dashboard

3. Review the transport request details.

Figure 9a: Approving a Transport Request

4. Click the **Instances**

icon, and then select **Approve** ![](https://377464071-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FXhp08OmU8050PePmMgDt%2Fuploads%2FUAxlPLawoDTjd9y5Up4O%2Fcheckicon.gif?alt=media\&token=097d4806-e965-4e62-8a64-b4cc23c307a4) to approve the workflow.

Figure 9b: Approving a Transport Request

5. Once the transport is approved, go back to the workflow and monitor the status of each process definition by clicking on the **Refresh**

button, or the **logs** ![](https://377464071-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FXhp08OmU8050PePmMgDt%2Fuploads%2FxS4BV9GCaGOBNaXMIgGa%2FiconShow.gif?alt=media\&token=5c81a9c2-c2da-43db-b44f-414c58f68dfe) if necessary.

6. When all the boxes have turned green, it means the transport was successful. You may check the transport status by going back to the **ChAI for SAP Tranports Dashboard**, or by checking your SAP system. You will also get an email notification with any status changes or incoming errors during the transport process.

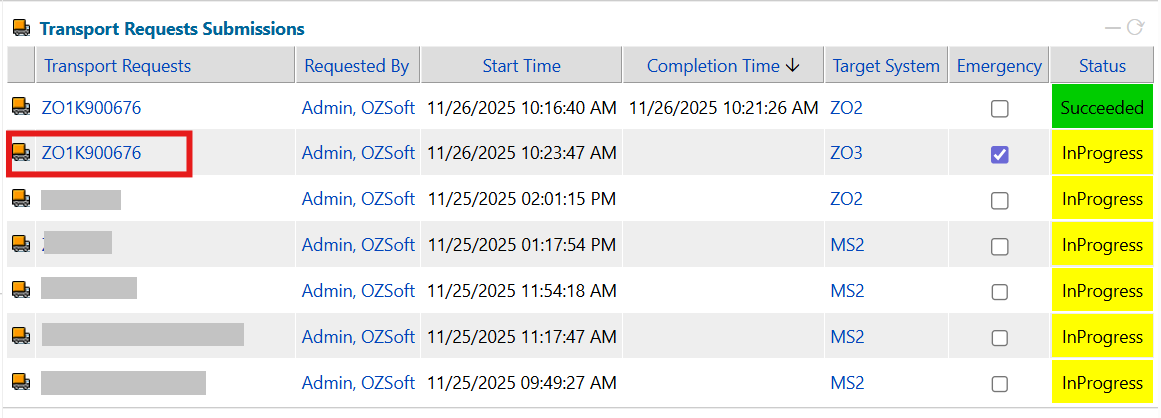

Figure 11: Transport Request Submissions in the ChAI for SAP Transports Dashboard

### Monitoring Transport Requests Status Once the transport is submitted, a process definition is created, and appropriate notifications will go out to the requester and approvers. Upon approval, the transport will follow the logic for either a normal scheduled import date/time or an emergency import path. To monitor the status of an ongoing transport request, follow the instructions below. 1. Navigate to the **ChAI for SAP Transports Dashboard**. 2. Click on the recently created transport request to see its workflow.

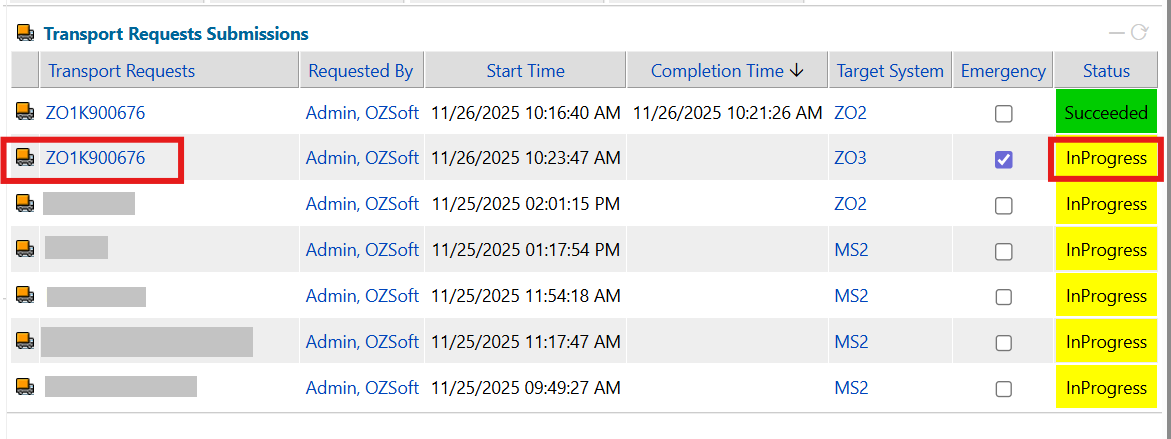

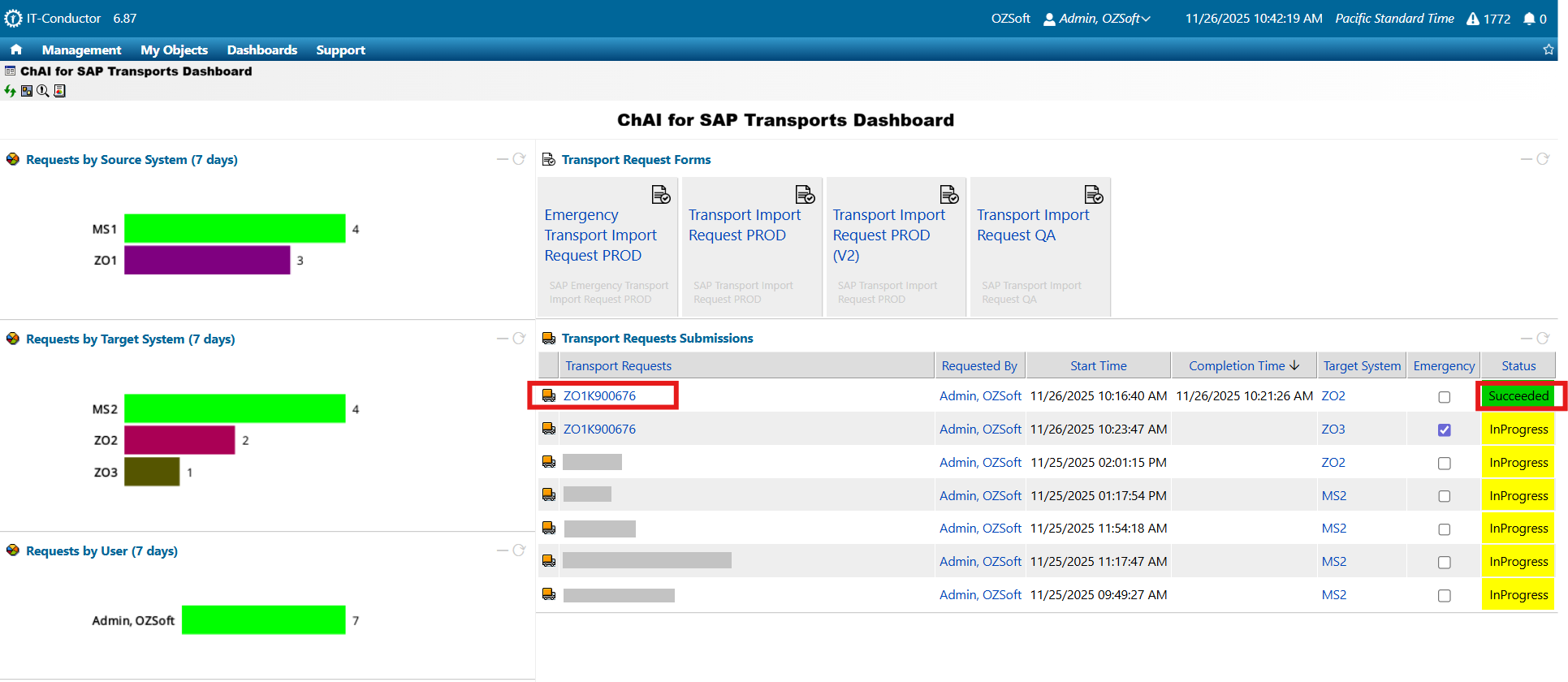

Figure 12: Transport Request Submissions

{% hint style="info" %} **Note:** IT-Conductor provides real-time insights into the status of each Transport Request, including whether it has been successfully processed or if any errors or warnings need attention. There are 4 main statuses in the IT-Conductor workflows: Red/Failed, Yellow/In Progress, Green/Succeeded, and Light blue/Initial (or not yet started). {% endhint %} 3. Inside the workflow, you can perform the following actions:

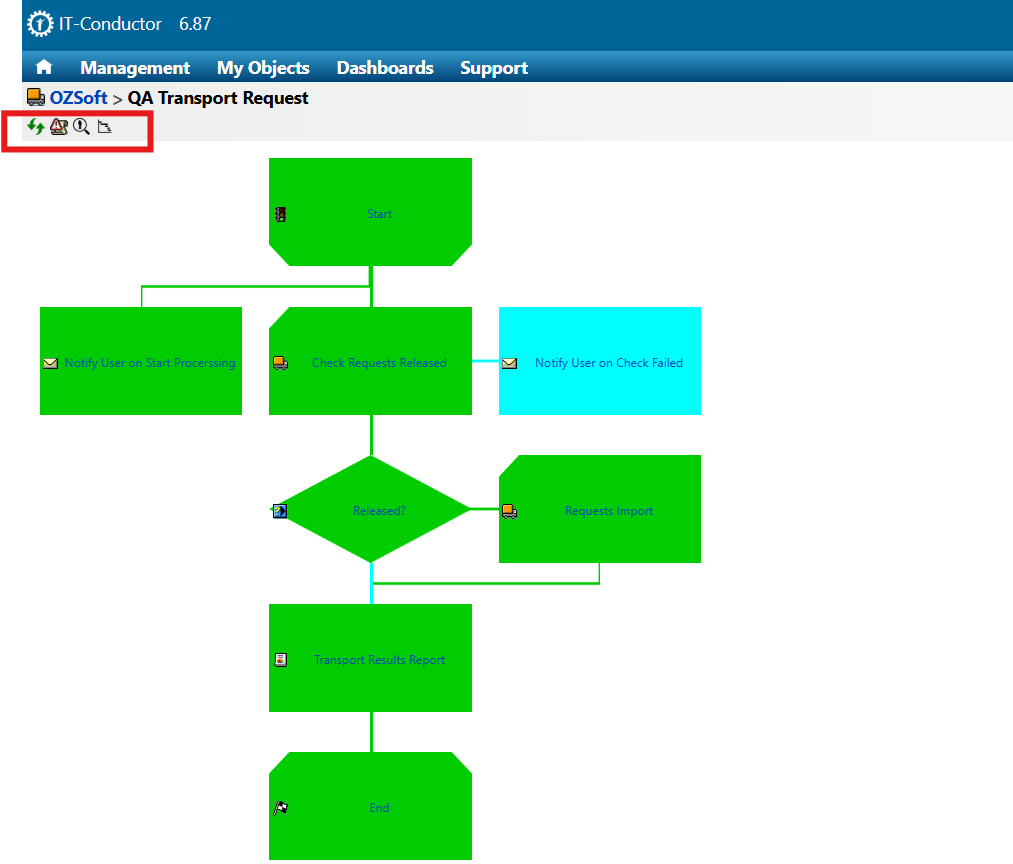

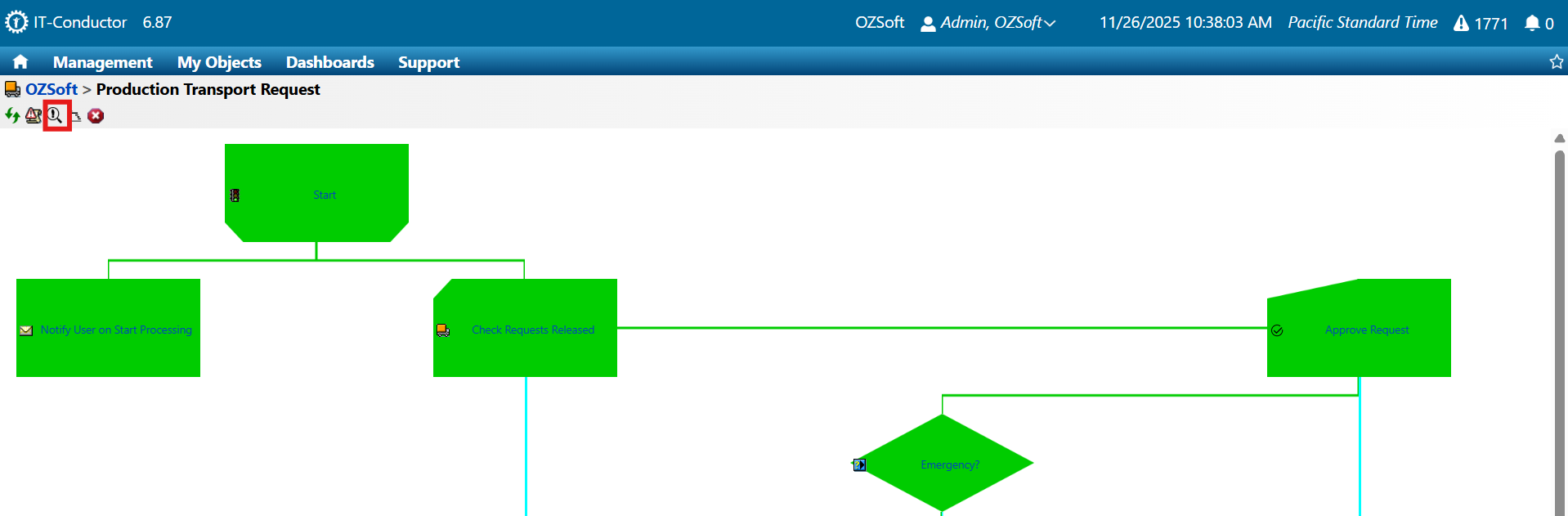

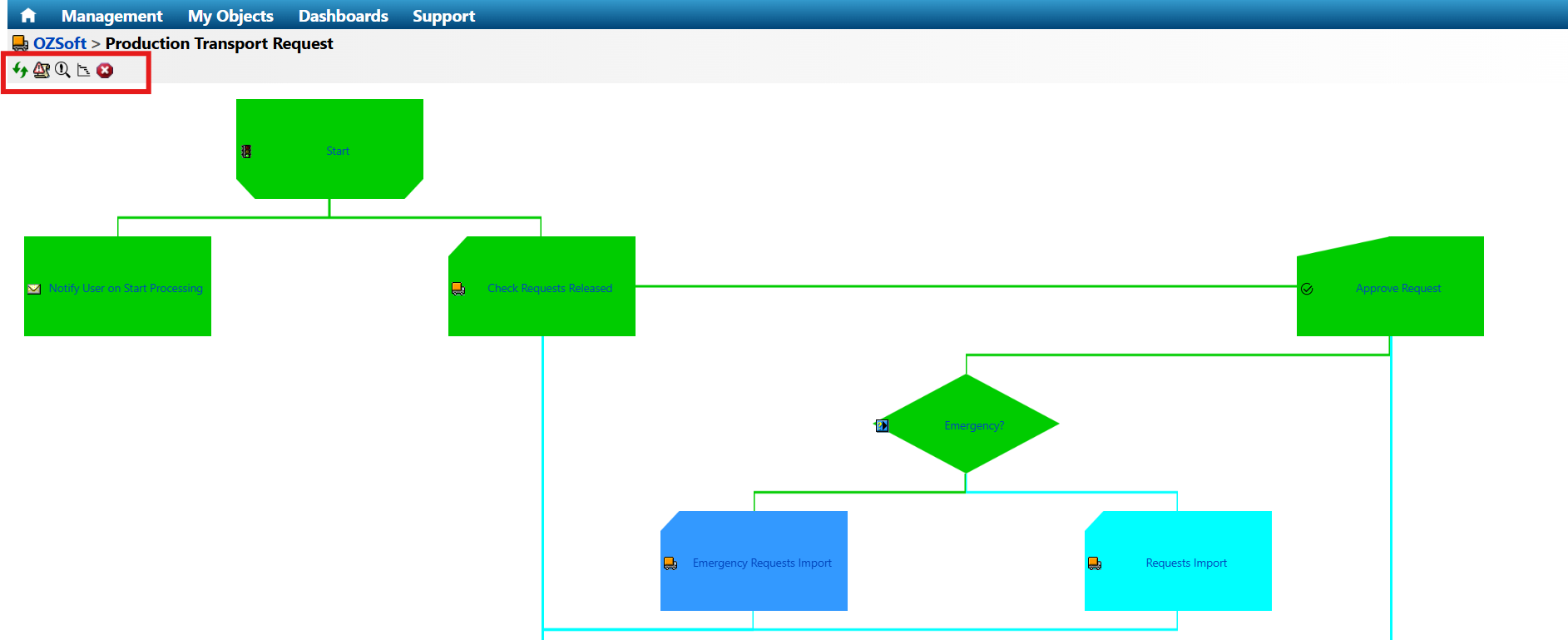

Figure 13: Options in the Transport Request Workflow

a. **Refresh**

the workflow status. b. **Transport Request Log** ![](https://377464071-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FXhp08OmU8050PePmMgDt%2Fuploads%2FxS4BV9GCaGOBNaXMIgGa%2FiconShow.gif?alt=media\&token=5c81a9c2-c2da-43db-b44f-414c58f68dfe). You can also view the log for each process definition once the box turns green. {% hint style="info" %} **Note:** Runtime processing information is kept for 30 days, and audit trail records are kept for 3 years. {% endhint %}

c. Check **Audit Trail**

d. View the **Gantt Chart**

for the transport process.

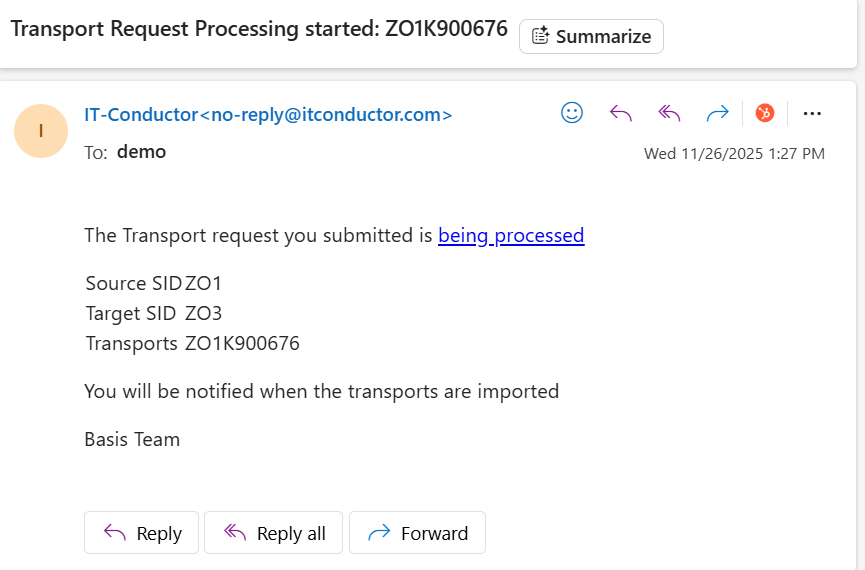

4. You will receive an email notification indicating that a transport request has been initiated.

Figure 17: Transport Request Email Notification

5. If one of the process definitions turns red, you can check its activity and execution logs and troubleshoot accordingly by clicking on the **Transport** ![](https://377464071-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FXhp08OmU8050PePmMgDt%2Fuploads%2FtSmg6dyd5WULxSBhFFCK%2Ftransporticon.gif?alt=media\&token=4580823c-db0f-4084-a277-e456452980d4) icon → **Log** ![](https://377464071-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FXhp08OmU8050PePmMgDt%2Fuploads%2FxS4BV9GCaGOBNaXMIgGa%2FiconShow.gif?alt=media\&token=5c81a9c2-c2da-43db-b44f-414c58f68dfe) or **Execution Log** ![](https://377464071-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FXhp08OmU8050PePmMgDt%2Fuploads%2F0bvi3ZIaR3O11pCEdpmK%2Flog-icon.gif?alt=media\&token=26b60e6c-6e85-4e5e-bc5a-5a73afb49df7)**.**

Figure 18: View Workflow Log/Execution Log

6. Once the entire workflow has turned green, it means the transport was successfully imported. You will also get an email notification with the details. For further confirmation, you may check your SAP system.

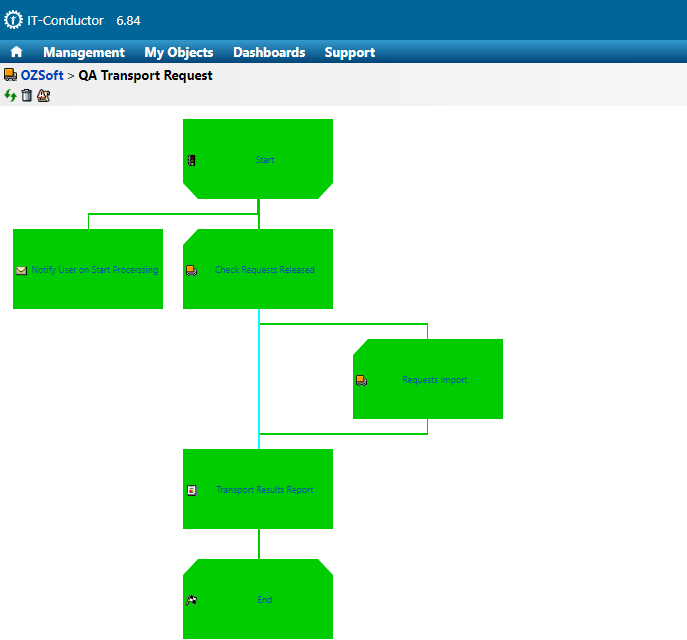

Figure 19: Successful Transport Request Workflow

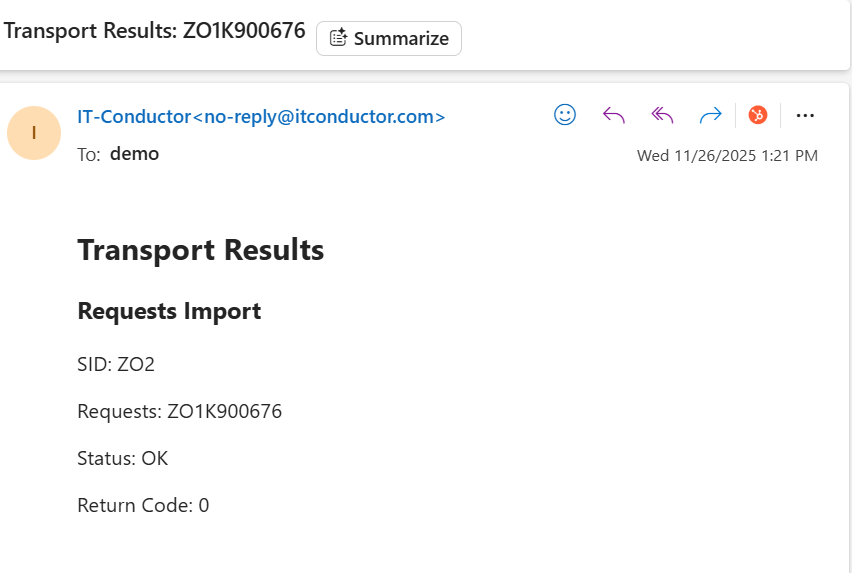

7. You will also receive an email report when the transport workflow is complete.

Figure 20: Transport Request Email Notification

### SAP Change Management Report Request a **ChAI for SAP Transports Dashboard** report from the [IT-Conductor Support Team](https://gui.itconductor.com/objectSavedSearch?OBJECT_Id=6036974507834046\&itconductor.menuItem=6036974507834046) and have it emailed to you on your preferred schedule and cadence. The SAP Change Management Report includes: * Request by Status * Request by Target System * Requests by User * Requests by Approver * Transport Requests Submissions

Figure 21a: SAP Change Management Report

Figure 21b: SAP Change Management Report

For more information, check our [FAQ section on SAP Transport Automation](https://docs.itconductor.com/user-guide/automation/sap-transport/faqs). ### Demo Video {% embed url="" %} Video 1: IT-Conductor ChAI for SAP Transports Demo {% endembed %} ### Related Information * [Leveraging SAP Transport Automation by IT-Conductor](https://www.itconductor.com/blog/transforming-your-implementation-projects-using-sap-transport-automation)
